Solstice is an open-source high-performance Monte Carlo ray-tracing package for use in solar energy simulations developed by Meso-Star for CNRS-PROMES. This page aims to summarise how to build Solstice 0.8.1 on Ubuntu 18.04 using as many distro-provided packages as possible. Note that the Méso-Star team provides another build process for Solstice, star-engine which you may find more convenient.

Packages in Ubuntu 18.04 which don't need to be compiled from source:

  • libyaml 0.1.7
  • CMake
  • AsciiDoc 8.6.10 (apparently it is being replaced by http://AsciiDoctor.org)
  • OpenMP support (various options, libgomp, libomp5, libiomp5...)

Pre-requisites

sudo apt install build-essential cmake asciidoc libyaml-dev git
mkdir -p ~/src

RCMake

RCMake https://gitlab.com/vaplv/rcmake/

We tried with version 0.4 https://gitlab.com/vaplv/rcmake/commit/b9e3f2b0730763c960bcdff3d84b99ac3e48defc

cd ~/src
git clone https://gitlab.com/vaplv/rcmake.git
cd rcmake
git checkout tags/0.4
cd cmake
cmake . && make -j4
sudo make install

This will install the various RCMake files to /usr/local/lib/cmake/ and some documentation in /usr/local/share/doc.

RSys

RSys https://gitlab.com/vaplv/rsys/

We tried with version 0.7 https://gitlab.com/vaplv/rsys/tags/0.7

cd ~/src
git clone https://gitlab.com/vaplv/rsys.git
cd rsys
git checkout tags/0.7
cd cmake
cmake . && make -j4
# make test
sudo make install

ISPC

It seems to be possible to use binaries of ISPC, no need to build from source.

cd ~/src
wget http://sourceforge.net/projects/ispcmirror/files/v1.9.2/ispc-v1.9.2-linux.tar.gz
tar zxvf ispc-v1.9.2-linux.tar.gz
cd ispc-v1.9.2-linux
./ispc  --version

Embree

Embree 2.x https://embree.github.io/

Building from source requires ISPC as above (although it's possible to build without ISPC, it is assumed that the resulting library will run much slower).

cd ~/src
sudo apt-get install libtbb-dev libglfw3-dev freeglut3-dev libmagick++-dev cmake libopenimageio-dev pkg-config libjpeg-dev libpng-dev
git clone https://github.com/embree/embree.git
cd embree
git checkout v2.17.6
cmake -DCMAKE_C_COMPILER=gcc -DCMAKE_CXX_COMPILER=g++ -DEMBREE_ISPC_EXECUTABLE=$HOME/src/ispc-v1.9.2-linux/ispc -DCMAKE_INSTALL_PREFIX=/usr/local .
make -j4
sudo make install

Note: on my normal system the above steps gave errors as noted at embree bug 226. However, on a completely clean Ubuntu 18.04 system, I don't see those errors, so there must be something in my environment that messed up the Embree build.

Star-3D

Star-3D https://gitlab.com/meso-star/star-3d/

Important! You need to make sure you earlier installed Embree 2.x, not the latest 3.x version.

cd ~/src
git clone https://gitlab.com/meso-star/star-3d.git
cd star-3d/cmake
cmake . && make -j4
sudo make install

Random123

It looks like the right place to get Random123 is here.

wget https://www.deshawresearch.com/downloads/download_random123.cgi/Random123-1.09.tar.gz
tar zxvf Random123-1.09.tar.gz
cd Random123-1.09
# if you want to run some tests:
#  cd examples
#  make

Note: you don't need the Boost version of Random123 that is linked from the Star-SP page.

Star-SP

Star-SP https://gitlab.com/meso-star/star-sp/

cd ~/src
git clone https://gitlab.com/meso-star/star-sp.git
cd star-sp
git checkout 8bd80d61
cd cmake
cmake -DCMAKE_PREFIX_PATH=$HOME/src/Random123-1.09 .
make -j4
# You can run some tests:
#  make test
#>>> 100% tests passed, 0 tests failed out of 17
sudo make install

Star-3DUT

Star-3DUT https://gitlab.com/meso-star/star-3dut/

cd ~/src
git clone https://gitlab.com/meso-star/star-3dut.git
cd star-3dut
git checkout tags/0.3.1
cd cmake
cmake . && make -j4
sudo make install

Polygon

cd ~/src
git clone https://gitlab.com/vaplv/polygon.git
cd polygon/
ls
git checkout tags/0.1.2
cd cmake
cmake -DCMAKE_BUILD_TYPE=RELEASE . && make -j4
sudo make install

Star-CPR

Star-CPR https://gitlab.com/meso-star/star-cpr.git

This library depends on Angus Johnson's polygon clipping library, which is available as libpolyclipping-dev in Ubuntu but doesn't come with the debug libraries that Star-CPR would like to have. Hence a patch to ClipperConfig.cmake in Star-CPR is required to make it build. FWIW it should be possible to download -dbgsym packages for all Ubuntu libraries including libpolyclipping, but I couldn't work that out just now.

Save the following as ~/src/clipperconfig.patch

diff --git a/cmake/ClipperConfig.cmake b/cmake/ClipperConfig.cmake
index 4588561..f778dd2 100644
--- a/cmake/ClipperConfig.cmake
+++ b/cmake/ClipperConfig.cmake
@@ -40,13 +40,13 @@ find_path(Clipper_INCLUDE_DIR polyclipping/clipper.hpp)
 set(Clipper_INCLUDE_DIR ${Clipper_INCLUDE_DIR}/polyclipping/)

 unset(Clipper_LIBRARY CACHE)
-unset(Clipper_LIBRARY_DEBUG CACHE)
+#unset(Clipper_LIBRARY_DEBUG CACHE)
 unset(Clipper_LIBRARY_RELWITHDEBINFO CACHE)
 unset(Clipper_LIBRARY_MINSIZEREL CACHE)
 find_library(Clipper_LIBRARY polyclipping
   DOC "Path to the clipper library used during release builds.")
-find_library(Clipper_LIBRARY_DEBUG polyclipping-dbg
-  DOC "Path to the clipper library used during debug builds.")
+#find_library(Clipper_LIBRARY_DEBUG polyclipping-dbg
+#  DOC "Path to the clipper library used during debug builds.")

 # Create the imported library target
 if(CMAKE_HOST_WIN32)
@@ -56,8 +56,8 @@ else(CMAKE_HOST_WIN32)
 endif(CMAKE_HOST_WIN32)
 add_library(Clipper SHARED IMPORTED)
 set_target_properties(Clipper PROPERTIES
-  ${_property} ${Clipper_LIBRARY_DEBUG}
-  ${_property}_DEBUG ${Clipper_LIBRARY_DEBUG}
+  ${_property} ${Clipper_LIBRARY}
+#  ${_property}_DEBUG ${Clipper_LIBRARY_DEBUG}
   ${_property}_RELEASE ${Clipper_LIBRARY})

 # Check the package
@@ -65,5 +65,6 @@ include(FindPackageHandleStandardArgs)
 FIND_PACKAGE_HANDLE_STANDARD_ARGS(Clipper DEFAULT_MSG
   Clipper_INCLUDE_DIR
   Clipper_LIBRARY
-  Clipper_LIBRARY_DEBUG)
+#  Clipper_LIBRARY_DEBUG
+  )

Then build Star-CPR as follows:

cd ~/src
sudo apt install libpolyclipping-dev
git clone https://gitlab.com/meso-star/star-cpr.git
cd star-cpr
git checkout tags/0.1.1
patch -p1 < ~/src/clipperconfig.patch
cd cmake
cmake -DCMAKE_BUILD_TYPE=RELEASE . && make -j4
sudo make install

Star-SF

cd ~/src
git clone https://gitlab.com/meso-star/star-sf.git
cd star-sf
git checkout tags/0.6
cd cmake
cmake . && make -j4
sudo make install

solstice-solver

solstice-solver https://gitlab.com/meso-star/solstice-solver/

cd ~/src
git clone https://gitlab.com/meso-star/solstice-solver.git
cd solstice-solver
git checkout tags/0.7.2
cd cmake
cmake . -DCMAKE_BUILD_TYPE=RELEASE && make -j4
make test
sudo make install

solstice-anim

solstice-anim https://gitlab.com/meso-star/solstice-anim/

cd ~/src
git clone https://gitlab.com/meso-star/solstice-anim.git
cd solstice-anim
git checkout tags/0.2.2
cd cmake
cmake . && make -j4
# make test
sudo make install

A bug was fixed in version 0.2.1 which made it impossible to build and run the tests. That is now working as of version 0.2.2.

Star-STL

Star-STL https://gitlab.com/meso-star/star-stl/

cd ~/src
git clone https://gitlab.com/meso-star/star-stl.git
cd star-stl
git checkout tags/0.3.2
cd cmake
cmake -DCMAKE_BUILD_TYPE=RELEASE && make -j4
# make test
sudo make install

solstice

cd ~/src
git clone https://gitlab.com/meso-star/solstice.git
cd solstice
git checkout tags/0.8.1
cd cmake
cmake . -DCMAKE_BUILD_TYPE=RELEASE && make -j4
# make test
sudo make install

Solstice is built and installed! Next, some instructions to run a simple test case are needed

Postprocessing tools

Before you can do an easy visualisation of a Solstice simulation, you need to compile some small post-processing tools. Proceed as follows:

cd ~/src
sudo apt install paraview
wget https://www.meso-star.com/projects/solstice/downloads/Solstice-PP-Sources-0.3.1.tar.gz
tar zxvf Solstice-PP-Sources-0.3.1.tar.gz
cd Solstice-PP-Sources-0.3.1
make -j4
export PATH=$PATH:$PWD

Running a basic example

For this example, contributed by Ye Wang, please download File:Solstice-demo.tar.bz2 to your ~/Downloads folder. Then,

cd ~
tar jxvf ~/Downloads/Solstice-demo.tar.bz2
cd solstice-demo

# run the simulation
solstice -D180,78 -v -n 1000000 -R demo-rcv.yaml -fo simul demo.yaml

# generate files for visualisation
solstice -D180,78 -g format=obj:split=geometry -fo geom demo.yaml
solstice -D180,78 -q -n 100 -R demo-rcv.yaml -p default demo.yaml > solpaths

# convert files to paraview format
solppraw simul
solmaps simul
solpp geom simul
solpaths solpaths

# open in paraview

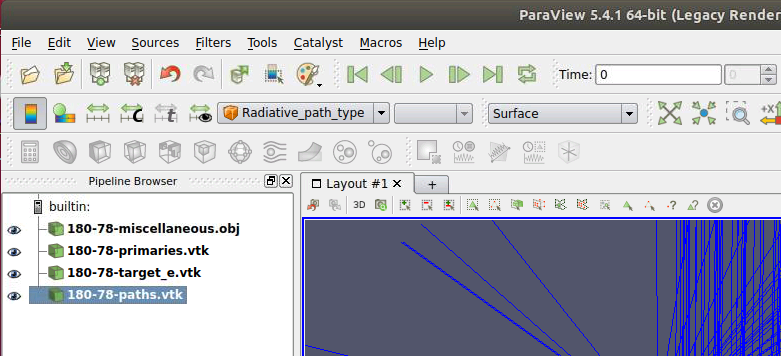

paraview
# you need to open the varios .vtk files in the ~/solstice-demo file, which should be
#   180-78-miscellaneous.obj  180-78-primaries.vtk  180-78-target_e.vtk
#   180-78-paths.vtk          180-78-receivers.vtk  180-78-virtual_target_e.vtk

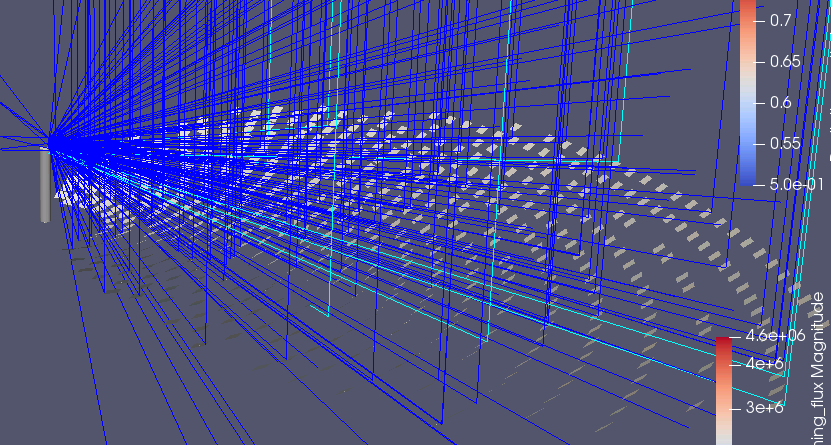

# after loading each file, you should enable the view of that file, using the little 'eye' icon next to the loaded filename.
